Custom Honda 250R With Build Sheet

Kyler Lenz’s Six 5 Design 250R

November 15, 2016

There are builds that stand out and then there are builds that completely put us at awe. The latest is a beautiful Honda race from Six 5 Design for the young gun Kyler Lenz out of Southern Wisconsin. Lenz, is making the jump from a Yamaha Blaster to this incredible Honda 250R.

The Youth classes are starting to be dominated by hybrid machines using motorcycle engines. This is one of the cleanest builds ever.ATV Rider

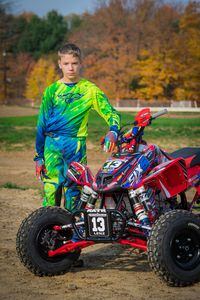

14 Year old Kyler Lenz is already racking up championships in the ATV world. Expect him to be one of the young guns of the pro class before too long.ATV Rider

Race quads in this class typically start with a stock Raptor 250 chassis, but this one is different. Jake Balsiger (Six 5 Design www.six5design.com (440) 487-0315 ) and John Bartosek started from the ground up on this project. The frame is a completely hand built, hybrid chassis that may actually handle better than what some of the pros are running.

According to Six 5 Design, this is the narrowest control arm pivot location of any production Hybrid on the market.ATV Rider

Everything including the frame, subframe, A-arms, swingarm, steering stem and linkage is exactly what you would get when you order a Alpha Hybrid chassis from Six 5 Design. The motor is the only major component that you could source elsewhere. In this case, it’s a 2014 250cc four stroke out of a Honda dirt bike.

The FMF exhaust equipped Honda CRF250R engine is the perfect stepping stone for a young teenager looking to build speed.ATV Rider

One of the cool things about Kyler’s racer is that when he’s ready to move up to a 450cc motor, all he will have to do is replace the motor mounts and install the 450 motor of his choice with a new set of motor mounts. The chassis is built for it. Right now as the quad sits, it weighs 352 pounds full of gas and ready to race. Check out the amazing photo gallery courtesy of Greg Riviotta and the build sheet below.

The best of everything was put into this build. PEP shocks have been trusted by top races for decades on the AMA MX circuit.ATV Rider

Kyler races in the AMA National Schoolboy classes. He is also the Gravity Park open youth Champion for 2016.ATV Rider

Every Six 5 Design suspension system is engineered 100% prior to fabrication. They use a mix of solid modeling, as well as CAD systems to prove their systems prior to the fabrication process ensuring that the customer gets the highest level of precision and quality.ATV Rider

Every nut and bolt was zinc plated to match. All aluminum was prepped and anodized black.ATV Rider

According to Balsiger, the Six 5 Design chassis is the only Hybrid chassis with variable caster thru the travel (Anti Dive Front End).ATV Rider

Six 5 Design is a metal fabrication company, focused mainly on off road suspension systems. Including: complete chassis, chassis modifications, front and rear suspension kits, steering systems, and retrofit applications. Their facility is 3600 sq/ft and has the following capabilities: Tig/Stick/Mig welding capabilities. In addition to a robotic welding station as well as CNC tube bending, machining, sheet metal fabrication, and rapid prototyping.ATV Rider

250R Alpha Hybrid:	Build Sheet
Owner	Kyle Lenz
Bike Builder	Six 5 Design www.six5design.com (440) 487-0315
Designer	Jake Balsiger
Fabricator	John Bartosek
Contributors	Six 5 Design, Baldwin Motorsports, Fourwerx Carbon, Rath Racing, SSI Decals, Precision Stabilizers
Frame	Alpha
Motor	Stock 2014 Honda CRF250Efi
Ignition/ elec	OEM Honda
Airbox	Six 5 Design w/ Pro Design YFZ intake kit / TRX450 Filter
Exhaust	Factory 4.1 FMF Titanium/Carbon Fiber w/ Six 5 Design mid pipe
A-arms/width	Six 5 Design Alpha Long Travel 49.9”
Front shocks/wheel travel	PEP PB1, 20.2” Extended Length with 10.7” Travel
Steering stabilizer	Precision Racing
Swingarm / length	Six 5 Design Alpha
Pivot Bolt	Fourwerx Titanium
Rear shock / travel	PEP PB1, 16.5” Extended 10.7”
Axle	Lonestar Axcaliber +4
Carrier / nut	Baldwin
Tire sizes f/r	Maxxis RZR Cross 20x6-10 / 18x10-8
Front Hubs	Baldwin Motorsports LTR450
Rear Hubs	OEM TRX450 Hubs \|
Rotors	Braking Wave \|
Wheels f/r	DWT Rockout 4:1 rolled edge / DWT rolled edge beadlocks
Handlebars/bend	ProTaper Fatbars, CR Hi
Handguards	Powermadd
Kill Switch	Pro Design
Front bumper/grab bar	Rath Racing TRX450R
Skidplates	None
Nerfs	Rath Racing
Seat	Fourwerx Custom Wave Seat
Tank	Six 5 Design aluminum Fuel Cell with billet fuel pump flange
Radiator	OEM TRX450
Coolant lines	CV4
Body	OEM 2008 – Current TRX450
Hood	Fourwerx A57 Carbon Fiber
Graphics	SSI Decals

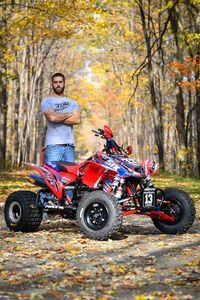

Jake Balsiger raced the AMA National MX/TT series from 2000 thru 2005. He won the 2003 Four Stroke Production Grand National Champion and in 2004 was the 12 hours of America A Class winner.ATV Rider
